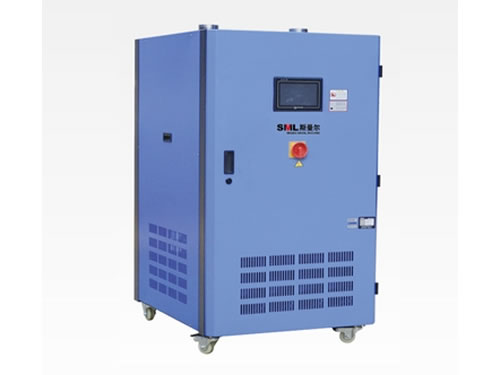

Plastic Dehumidifier

Description

Plastic dehumidifier is adopted to reduce the level of humidity during the process of plastic injection molding since excessive humidity can interfere in the plastic molding effect.

Features

1. HYSION plastic dehumidifier is distinct because of its converse alarm function.
2. It is equipped with highly efficient condenser to keep the temperature of the inverse air low.
3. The dehumidifying dryer can provide the dry wind with the low dew point of -50℃ in accordance with the practical temperature requirements.

Specification of Plastic Dehumidifier

Material	Drying Temperature (℃)	Drying Time (hr)	Moisture Content (%)	Drying Capacity (kg/hr)
				80	100	120	150	200	300	400	500	700	1000	1500	2000
ABS	80	2-3	0.2-0.6	25	50	75	90	120	180	240	300	400	410	700	1045
LCP	150	2-3	0.04	20	27	38	55	80	140	165	220	270	320	510	790
POM	100	2	0.08-0.25	25	50	75	90	120	180	240	300	400	620	1010	1580
PMMA	80	3	0.1-0.7	20	40	60	75	100	150	200	250	350	450	767	1150
IONOMER	90	3-4	1.4	15	30	40	50	70	105	130	150	220	270	432	650
PA6/6.6/6.10	75	4-6	1.2-5	20	40	60	70	90	135	180	240	360	230	380	580
PA11	75	4-6	1.0-1.5	17.5	35	50	60	80	120	160	200	280	260	470	685
PA12	75	4-5	1.0-1.5	17.5	35	50	60	80	120	160	200	280	270	465	685
PC	120	2-3	0.3-0.36	27.5	55	80	100	130	185	260	320	420	505	810	1200
PU	90	2-3	0.2-0.9	20	40	60	75	100	150	200	250	350	440	740	1130
PBT	130	3-4	0.08-0.34	25	50	75	90	120	180	240	300	420	380	620	940
PE	90	1	0.01	32.5	65	100	120	160	240	320	400	650	1280	2107	3110
PEI	150	3-4	0.25	18	27	41	53	80	135	165	200	250	320	550	820
PET	160	4-5	0.08	15	30	40	50	70	100	130	160	220	300	490	750
PETG	70	3-4	0.5	19	27	39	53	80	135	162	210	265	310	520	790
PEN	170	5	0.1	21	30	39	60	90	150	175	250	310	340	580	900
PES	150	4	0.8	21	30	40	60	90	150	175	245	300	350	600	900
PPO	110	1-2	0.13	27.5	55	80	95	130	190	260	330	470	500	880	1310
PPS	150	3-4	0.1	19	44	38	53	80	133	155	200	250	310	550	780
PP	120	2	0.32	30	60	90	110	150	220	300	380	540	600	1010	1580
PS(GP)	80	1	0.01	42.5	85	130	160	240	360	480	600	840	1050	1700	2600
PSU	120	3-4	0.22	30	60	85	105	140	210	280	350	500	350	580	840
PVC	70	1-2	0.1-0.4	27.5	55	80	95	130	190	260	350	500	530	870	1310
SAN(AS)	80	1-2	0.1-0.3	27.5	55	80	95	130	190	260	350	500	540	870	1310
TPE	110	3	0.1	27.5	37	50	85	125	202	245	331	413	476	812	1200

Model	Dry Blower (m3/hr)	Power of Dry Blower (Kw)	Power of Dry Blower (kw)	Power of rey. Heater (kw)	Pipe Diameter (inch)	Dimensions (mm)	Weight (kg)
SLD-80	80	0.55	0.37	4.2	2″	750 × 600 × 1230	155
SLD-100	100	0.75	0.37	5	2″	750 × 600 × 1230	165
SLD-120	120	1.1	0.37	5	2″	900 × 650 × 1330	202
SLD-150	150	1.5	0.55	7	2.5″	900 × 650 × 1330	208
SLD-200	200	2.2	0.55	7	2.5″	900 × 650 × 1330	220
SLD-300	300	3	0.75	9	3.5″	1050 × 800 × 1550	278
SLD-400	100	4	0.75	9	3.5″	1050 × 800 × 1550	300
SLD-500	500	5.5	1.1	12	5″	1250 × 900 × 1620	400
SLD-700	700	7.5	1.5	15	5″	1250 × 900 × 1620	450
SLD-1000	1000	8	2.2	18	6″	1450 × 1150 × 1770	500
SLD-1500	1500	11	2.2	21	6″	1450 × 1150 × 1770	530
SLD-2000	5000	15	3	27	8″	1600 × 1250 × 1870	570

Diagram of installation:
