HX(*) 218 Injection Molding Machines

Description

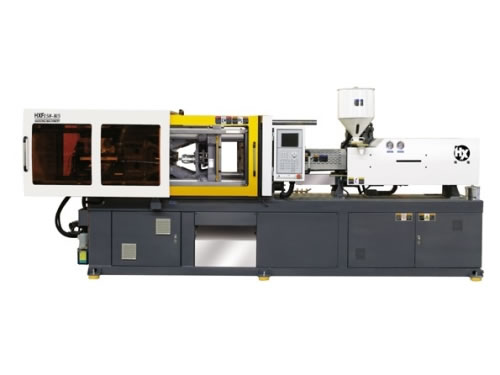

HX 218 horizontal injection molding machine adopts the hydraulic transmission system and is driven by the servo motor. Highly energy-saving molding machine is characterized by a high speed response accumulator, which can effectively save the hydraulic oil in hydraulic system and release it out again when necessary. Based on the flexible response, high speed injection molding is fulfilled. As specialist plastic moulding device supplier in China, we provide various injection molding machine models for options.

Advantages

1. HX 218 horizontal injection molding machine runs effectively by keeping the balance between energy supply and demand. Specifically speaking, power system can provide the accurate amount of the energy according to that the injection molding machine needs. In this way, energy loss is avoided.
2. As the "new break-through”, HX 218 plastic moulding machine is distinctive due to the pressure close-loop control. It can adjust the setting pressure and actual pressure to the same.
Why Do People Choose Our Injection Molding Machine?

Parameter :


MODEL:HX(*)218/730
TECHNICAL PARAMETER TABLE A B C
INJECTION UNIT SCREW DIAMETER mm 45 50 55
SCREW L/D RATIO L/D 22.2 20 18.2
INJECTION CAPACITY (THEORETICAL) cm3 349 431 522
INJECTION WEIGHT(PS) g 324 400 485
INJECTION PRESSURE MPa 210 170 140
INJECTION RATE g/s 128 158 192
PLASTICIZING CAPACITY g/s 18 25 32
SCREW SPEED rpm 170
CLAMPING UNIT CLAMP FORCE KN 2180
OPEN STROKE mm 520
MAX. MOULD mm 580
MIN. MOULD mm 200
SPACE BWTWEEN TIE-BARS (W×H) mm 520×520
EJECTOR FORCE KN 71
EJECTOR STROKE KN 150
EJECTOR NUMBER n 9
OTHERS PUMP PRESSURE MPa 16
MOTOR POWER KW 18.5
HEATING POWER KW 11.95
MACHINE DIMENSION (L×W×H) m 5.70×1.54×2.09
MACHINE WEIGHT t 7
OIL TANK CAPACITY L 281

Mold Plate Dimension:
