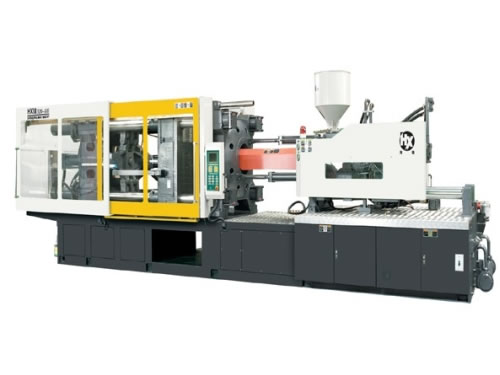

HX(*) 488 Injection Molding Machines

Description

HX 488 high precision injection machine is updated from traditional injection presses. It inherit advantageous features from HX series, such as energy saving, precise controlling, fast response and reliable performance. What is more, it is newly improved in repeatability, plasticizing speed, power consumption and machine noise. This horizontal plastic injection machinery is suitable for molding various plastic products, such as electric components, telecommunication device parts, home appliances, toys, car components, etc.

Features of HX 488 High Precision Injection Machine

1. Power Saving: Compared with conventional injection molding machines, this new type can save energy by 30% to 50% under an ideal operation condition.
2. Stable: Due to servo motor close-loop control, repeatability is greatly improved.
3. High Speed: By using variable displacement pumps, its performance can be increased by 20%.
4. Oil Saving: It adopts filter device of high performance to extend using time of hydraulic oil.
Why Do People Choose Our Injection Molding Machine?

Parameter :


MODEL:HX(*)488/3100
TECHNICAL PARAMETER TABLE A B C
INJECTION UNIT SCREW DIAMETER mm 75 80 85
SCREW L/D RATIO L/D 21.3 20 18.8
INJECTION CAPACITY (THEORETICAL) cm3 1634 1860 2099
INJECTION WEIGHT(PS) g 1495 1701 1921
INJECTION PRESSURE MPa 191 168 148
INJECTION RATE g/s 382 435 491
PLASTICIZING CAPACITY g/s 52 57 62
SCREW SPEED rpm 150
CLAMPING UNIT CLAMP FORCE KN 4880
OPEN STROKE mm 830
MAX. MOULD mm 830
MIN. MOULD mm 330
SPACE BWTWEEN TIE-BARS (W×H) mm 8108810
EJECTOR FORCE KN 181
EJECTOR STROKE KN 230
EJECTOR NUMBER n 17
OTHERS PUMP PRESSURE MPa 16
MOTOR POWER KW 45
HEATING POWER KW 24
MACHINE DIMENSION (L×W×H) m 8.4×2.14×2.5
MACHINE WEIGHT t 19.8
OIL TANK CAPACITY L 969

Mold Plate Dimension:
