Description

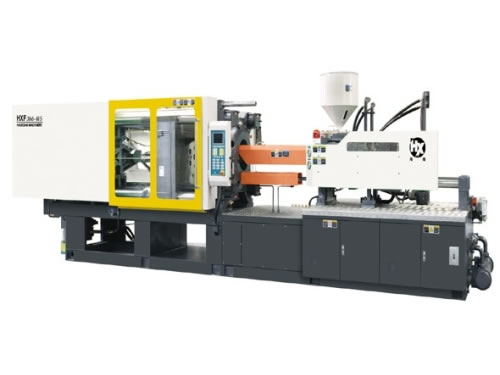

Featured high precision, HX 388 direct clamping injection molding machines are suitable for molding various thin-wall and complicated plastic products, including food packaging containers, IML (In-Mold Labelling) containers, buckets, gear parts, disposable tablewares, etc. This high speed injection moulding facility is characteristic of excellent structural rigidity, flexibility and accuracy. Besides, mechanical wear and power consumption are reduced due to dedicated designing for this direct clamping injection molding machine.
Features
1. Direct clamping system helps to keep diverse plastic molding processes smooth and accurate.
2. Fully closed loop injection system configured with precise Moog servo valve is adopted to guarantee precise weight and position when injecting plastic material into the mold. Meanwhile, molding tolerance is small enough to realize high-precision molding.
3. HX 388 direct clamping injection molding machine is equipped with encoder and pressure sensor which can give real-time feedback about pressure and flow.
4. The oil-way unit is fixed on the executive component directly, which consequently makes the control more precise and the response faster.
5. The injection unit adopts linear slider design, preventing the machine barrel from dropping down. Thus, it guarantees good stability and high precision during injection.
HX388 direct clamping injection molding machine has won lots of reputations at home and abroad. Are you looking for high precision plastic injection molding machines? Don’t hesitate to contact us! We will offer you one-stop perfect injection molding solutions with the most competitive price.
Why Do People Choose Our Injection Molding Machine?
Parameters of HX 388 Direct Clamping Injection Molding Machine
|
MODEL:HX(*)388/2000
|
|
TECHNICAL PARAMETER TABLE
|
A
|
B
|
C
|
|
INJECTION UNIT
|
SCREW DIAMETER
|
mm
|
65
|
70
|
75
|
|
SCREW L/D RATIO
|
L/D
|
22.6
|
21
|
19.6
|
|
INJECTION CAPACITY (THEORETICAL)
|
cm3
|
1128
|
1308
|
1502
|
|
INJECTION WEIGHT(PS)
|
g
|
1026
|
1190
|
1367
|
|
INJECTION PRESSURE
|
MPa
|
182
|
157
|
137
|
|
INJECTION RATE
|
g/s
|
245
|
284
|
326
|
|
PLASTICIZING CAPACITY
|
g/s
|
33
|
41
|
49
|
|
SCREW SPEED
|
rpm
|
136
|
|
CLAMPING UNIT
|
CLAMP FORCE
|
KN
|
3880
|
|
OPEN STROKE
|
mm
|
700
|
|
MAX. MOULD
|
mm
|
800
|
|
MIN. MOULD
|
mm
|
280
|
|
SPACE BWTWEEN TIE-BARS (W×H)
|
mm
|
720×720
|
|
EJECTOR FORCE
|
KN
|
110
|
|
EJECTOR STROKE
|
KN
|
160
|
|
EJECTOR NUMBER
|
n
|
13
|
|
OTHERS
|
PUMP PRESSURE
|
MPa
|
16
|
|
MOTOR POWER
|
KW
|
30
|
|
HEATING POWER
|
KW
|
19.93
|
|
MACHINE DIMENSION (L×W×H)
|
m
|
7.35×1.96×2.35
|
|
MACHINE WEIGHT
|
t
|
13.5
|
|
OIL TANK CAPACITY
|
L
|
680
|

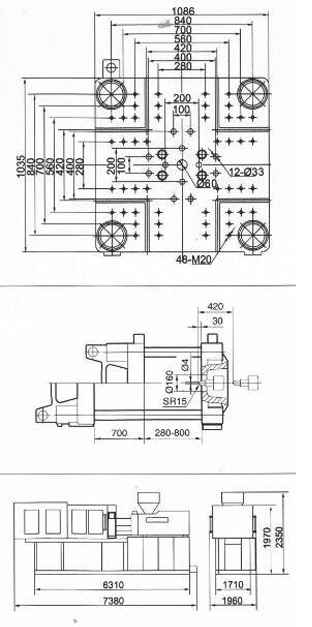

Mold Plate Dimension:
