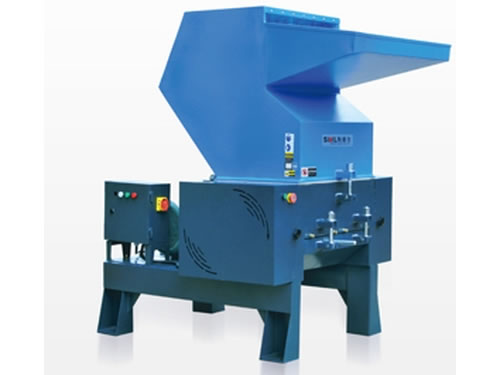

Plastic Crusher

Introduction

Plastic crusher, also known as plastic mill, plays an important auxiliary role for injection molding machine. It is applicable to the pulverizing of all kinds of plastics, including the wastes of injection molding, blow molding and ejection forming. With the compact structure, the whole process turns out to be a perfect experience with convenient operation, easy cleaning, simple maintenance and high working efficiency.

Parameters of Plastic Crusher :


Model Chamber Caliber (mm) Crush Capacity
(Kg/h)
Rotating Blade
(Pcs)
Fixed Blade
(Pcs)
Motor
(Kw)
Extermal Dimensions (L×W×H) Weight (kg)
SG-230F 200×230 100-150 3×2 2×1 4 920×610×1050 250
SG-300F 200×300 150-200 3×3 2×1 5.5 950×470×1190 400
SG-400F 235×400 200-250 3×4 2×1 7.5 980×840×1300 500
SG-500F 290×500 300-350 3×5 2×2 11 1100×1020×1530 950
SG-600F 320×600 350-450 3×6 2×2 15 1200×1110×1690 1300
SG-800F 540×810 450-600 3×4 2×2 22 2200×1500×2300 2100
SG-1000F 660×1000 600-1000 3×5 2×3 30 2300×1750×2650 2500
SG-1200F 800×1200 800-1200 3×6 2×3 45 2700×2100×3100 3500
