Description
HX 406 thin wall high speed injection machine is specially used for forming thin-layer plastic containers and complicated commodities. As one of the best well-known plastic injection molding machine suppliers in China, HYSION Company enjoys high reputation, no matter in machine quality or in injection molding solution services.
Advantages
1. High Speed
Adopting single cylinder injection system, HX 406 thin wall high speed injection machine is featured by high precision, low inertia and fast response. Thus, it is suitable for high-speed or short-cycle injection, especially for thin wall injection. The machine frame and clamping units are also available for operation under high pressure.
2. High Energy Saving
Equipped with high response servo system, the motor can put out power based on practical demands, avoiding overflow or unnecessary power dissipation. In this way, power is saved by 30% to 70% than that in traditional thin wall high speed injection machines. Additionally, the servo motor makes position more accurate.
3. High Safety
Triple-stage protections are applied respectively at mechanical, hydraulic and electrical aspect. Independently controlled security module is used to prevent accidents triggered by misoperation during mold closing, injection, material charging, and alike.
If you have any project need thin wall high speed injection machine, please feel free to contact us. We will offer you best solution for your thin wall high speed injection molding.
Why Do People Choose Our Injection Molding Machine?
Parameter :
|
MODEL:HX(*)406/2800
|
|
TECHNICAL PARAMETER TABLE
|
A
|
B
|
C
|
|
INJECTION UNIT
|
SCREW DIAMETER
|
mm
|
70
|
75
|
80
|
|
SCREW L/D RATIO
|
L/D
|
21.4
|
20
|
18.8
|
|
INJECTION CAPACITY (THEORETICAL)
|
cm3
|
1423
|
1634
|
1859
|
|
INJECTION WEIGHT(PS)
|
g
|
1295
|
1487
|
1692
|
|
INJECTION PRESSURE
|
MPa
|
199
|
173
|
152
|
|
INJECTION RATE
|
g/s
|
366
|
395
|
446
|
|
PLASTICIZING CAPACITY
|
g/s
|
60
|
65
|
70
|
|
SCREW SPEED
|
rpm
|
160
|
|
CLAMPING UNIT
|
CLAMP FORCE
|
KN
|
4060
|
|
OPEN STROKE
|
mm
|
700
|
|
MAX. MOULD
|
mm
|
800
|
|
MIN. MOULD
|
mm
|
280
|
|
SPACE BWTWEEN TIE-BARS (W×H)
|
mm
|
720×720
|
|
EJECTOR FORCE
|
KN
|
110
|
|
EJECTOR STROKE
|
KN
|
160
|
|
EJECTOR NUMBER
|
n
|
13
|
|
OTHERS
|
PUMP PRESSURE
|
MPa
|
16
|
|
MOTOR POWER
|
KW
|
37
|
|
HEATING POWER
|
KW
|
20.73
|
|
MACHINE DIMENSION (L×W×H)
|
m
|
7.57×1.96×2.41
|
|
MACHINE WEIGHT
|
t
|
14.2
|
|
OIL TANK CAPACITY
|
L
|
687
|

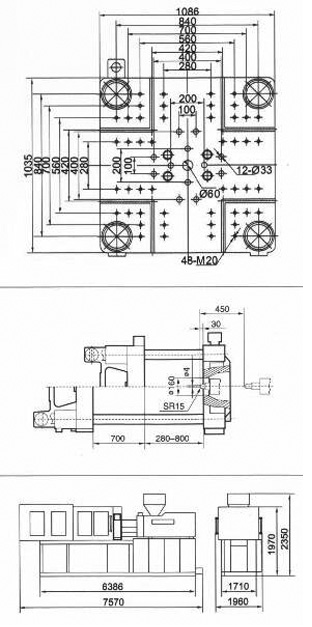

Mold Plate Dimension:
