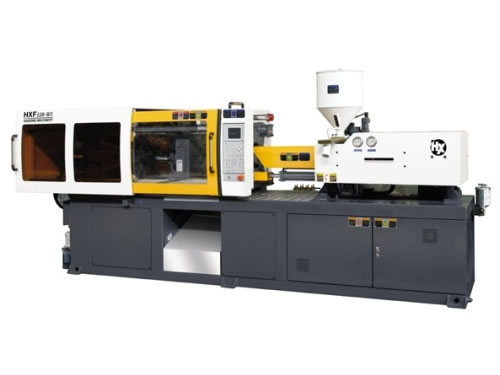

HX(*) 128 Injection Molding Machines

Features

1. HX servo drive motor injection molding machine is with clamping force ranging from 65 to 2000 tons.
2. Oil temperature is greatly reduced than other molding machines.
3. During mold opening and closing, impact is weak. Thus, machine life as well as the mold life is prolonged.
4. Hydraulic variable pump controlling system features fast response and short forming cycle, which contributes to energy saving and environment protection. Besides, with this high-performance variable pump controlling system, three-way ratio valve is not a must to HX 128 servo drive motor injection molding machine.

Advantages of HX 128 Injection Moulding Device

1. Molding Stability

Adoption of servo motor closed-loop control ensures great improvement in repeatability.

2. Quiet Operation

Lower noise is generated, particularly in low speed applications.

3. Reliable Holding Pressure

Compared with traditional hydraulic machine, HX 128 servo drive motor injection molding machine is of more stable holding pressure.

4. Better Oil Temperature Stability

Only the necessary hydraulic oil needed for multi functions is delivered by servo system, which as a result avoids unnecessary generation of heat and substantially lowers the oil cooling requirements.
Why Do People Choose Our Injection Molding Machine?

Parameters of HX 128 Servo Drive Motor Injection Molding Machine :


MODEL:HX(*)128/330
TECHNICAL PARAMETER TABLE A B C
INJECTION UNIT SCREW DIAMETER mm 35 38 42
SCREW L/D RATIO L/D 23.8 22 19.9
INJECTION CAPACITY (THEORETICAL) cm3 154 181 222
INJECTION WEIGHT(PS) g 143 168 206
INJECTION PRESSURE MPa 219 186 152
INJECTION RATE g/s 87 102 126
PLASTICIZING CAPACITY g/s 11 13 15
SCREW SPEED rpm 200
CLAMPING UNIT CLAMP FORCE KN 1280
OPEN STROKE mm 350
MAX. MOULD mm 450
MIN. MOULD mm 150
SPACE BWTWEEN TIE-BARS (W×H) mm 410×370
EJECTOR FORCE KN 38
EJECTOR STROKE KN 120
EJECTOR NUMBER n 5
OTHERS PUMP PRESSURE MPa 16
MOTOR POWER KW 13
HEATING POWER KW 9.3
MACHINE DIMENSION (L×W×H) m 4.34×1.29×1.86
MACHINE WEIGHT t 3.3
OIL TANK CAPACITY L 235

Mold Plate Dimension:
