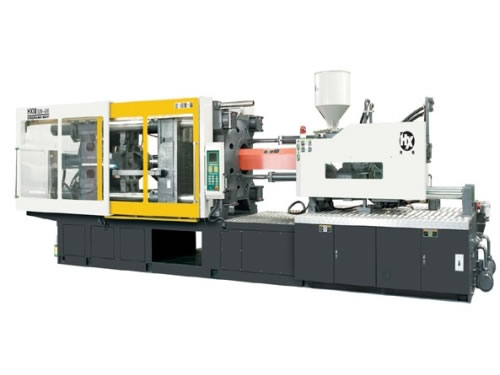

HX(*) 466 Injection Molding Machine

Description

HX 466 energy saving injection moulding machine not only inherits the great advantages of "simple molding setting, easy operation, long service life, convenient maintenance, low running cost and highly sensitive mold protection" from traditional hydraulic machines, but also absorbs the merits from patented rotational direct clamping system. It is a brand new hydroelectric machine with faster injection response and better machine performance. HX 466 energy saving injection moulding machine is suitable for production of mobile phone housings, parts of electric communication devices, DVD fittings and other precise parts of audio-visual products.

Advantages

1. Compared with conventional injection molding machines, they can save power by 30% to 50% under an ideal operation condition.
2. HX 466 energy saving injection moulding machine adopts servo motor close-loop control, greatly improving the repeatability.
3. By using variable displacement pumps, its performance can be increased by 20%.
4. It adopts filter device of high performance to prolong working time of hydraulic oil
5. Appropriate heating and low oil temperature not only save cooling water, but also make the sealing elements more durable.

Parameters of HX 466 Injection Moulding Machine :

MODEL:HX(*)466/3100
TECHNICAL PARAMETER TABLE			A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	75	80	85
	SCREW L/D RATIO	L/D	21.3	20	18.8
	INJECTION CAPACITY (THEORETICAL)	cm3	1634	1860	2099
	INJECTION WEIGHT(PS)	g	1495	1701	1921
	INJECTION PRESSURE	MPa	191	168	148
	INJECTION RATE	g/s	382	435	491
	PLASTICIZING CAPACITY	g/s	52	57	62
	SCREW SPEED	rpm	150
CLAMPING UNIT	CLAMP FORCE	KN	4660
	OPEN STROKE	mm	780
	MAX. MOULD	mm	820
	MIN. MOULD	mm	300
	SPACE BWTWEEN TIE-BARS (W×H)	mm	770×770
	EJECTOR FORCE	KN	120
	EJECTOR STROKE	KN	200
	EJECTOR NUMBER	n	13
OTHERS	PUMP PRESSURE	MPa	16
	MOTOR POWER	KW	45
	HEATING POWER	KW	24
	MACHINE DIMENSION (L×W×H)	m	8.4×2.08×2.4
	MACHINE WEIGHT	t	18
	OIL TANK CAPACITY	L	969

Mold Plate Dimension:
