Description

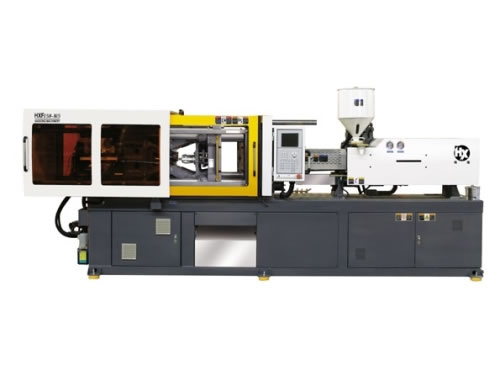

The brand new HX 158 high speed plastic injection moulding machine is featured with faster injection response and better machine performance. It not only embraces the traditional hydraulic machine’s outstanding advantages of "simple molding setting, easy machine operation, long service life, convenient maintenance, low running cost and highly sensitive mold protection", but also employs patented rotational direct clamping system. HX158 injection molding machine is suitable for production of mobile phone housings, electric communication device parts, DVD fittings and other precision parts of audio-visual products.
Outstanding Advantages of HX 158 High Speed Plastic Injection Moulding Machine
1. High Speed
HX158 adopts high precision single cylinder injection system, which is especially suitable for high speed injection with low-inertia and high response speed. With shorter molding cycle, the thin wall high speed injection works more efficiently.
2. High Energy Saving
HX158 is specially equipped with high response servo system, and its output is based on the practical need, with overflow and waste avoided. Compared with traditional machines, HX 158 high speed plastic injection moulding machine can save energy consumption around 30-70% and control the position more precisely.
3. High Safety
Thin wall high speed injection machine provides triple protections concerning mechanical, hydraulic, and electrical respects. Independent security module control will avoid any mistake triggered by misoperation of machine closing, injection, charging, and nozzle forward .
Why Do People Choose Our Injection Molding Machine?
Parameter :
|
MODEL:HX(*)158/560
|
|
TECHNICAL PARAMETER TABLE
|
A
|
B
|
C
|
D
|
|
INJECTION UNIT
|
SCREW DIAMETER
|
mm
|
38
|
42
|
45
|
48
|
|
SCREW L/D RATIO
|
L/D
|
24.3
|
22
|
20.5
|
19.2
|
|
INJECTION CAPACITY (THEORETICAL)
|
cm3
|
226
|
2778
|
318
|
361
|
|
INJECTION WEIGHT(PS)
|
g
|
206
|
252
|
289
|
328
|
|
INJECTION PRESSURE
|
MPa
|
248
|
203
|
177
|
155
|
|
INJECTION RATE
|
g/s
|
100
|
126
|
144
|
163
|
|
PLASTICIZING CAPACITY
|
g/s
|
13
|
15
|
20
|
24
|
|
SCREW SPEED
|
rpm
|
200
|
|
CLAMPING UNIT
|
CLAMP FORCE
|
KN
|
1580
|
|
OPEN STROKE
|
mm
|
400
|
|
MAX. MOULD
|
mm
|
500
|
|
MIN. MOULD
|
mm
|
150
|
|
SPACE BWTWEEN TIE-BARS (W×H)
|
mm
|
460×410
|
|
EJECTOR FORCE
|
KN
|
33
|
|
EJECTOR STROKE
|
KN
|
130
|
|
EJECTOR NUMBER
|
n
|
5
|
|
OTHERS
|
PUMP PRESSURE
|
MPa
|
16
|
|
MOTOR POWER
|
KW
|
15
|
|
HEATING POWER
|
KW
|
10.05
|
|
MACHINE DIMENSION (L×W×H)
|
m
|
5.0×1.32×1.93
|
|
MACHINE WEIGHT
|
t
|
4.5
|
|
OIL TANK CAPACITY
|
L
|
253
|
Mold Plate Dimension:
