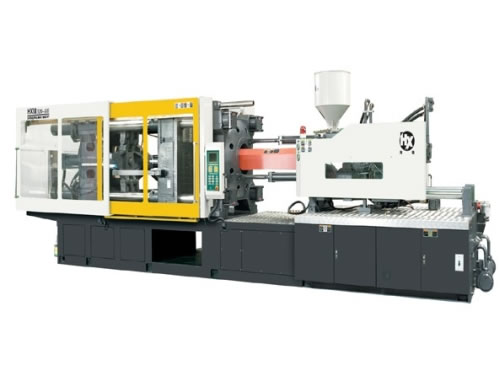

HX(*) 526 Injection Molding Machine

Description

HX 526 electric injection moulding machines are used for manufacturing a wide range of plastic products by injecting thermoplastic plastics or thermosetting plastics to the forming mold. It is composed of injection unit and clamping unit.

Features

1. Perfect Combination of Electrical and Hydraulic Driving Technology

HX 526 electric injection moulding machines are equipped with imported servo motor driven hydraulic pumps.

2. Low Cost

Compared with the full electrical injection machine, this servo-motor-driven injection molding machinery is featured with lower production cost and maintenance cost.

3. Fast Response

High efficiency piston pump realizes fast-response and super precision injection molding.

4. High Performance

HX 526 electric injection moulding machines apply high-torque servo motor and variable displacement piston pumps to greatly improve molding speed. Besides, continuous pressure holding performance is of excellent repeatability.

5. Easy for Wiring

Integration of controller and driver makes it easier for wiring.

Parameters of HX 526 Electric Injection Moulding Machines :

MODEL:HX(*)526/3500
TECHNICAL PARAMETER TABLE			A	B	C	D
INJECTION UNIT	SCREW DIAMETER	mm	75	80	85	90
	SCREW L/D RATIO	L/D	22.7	21.3	20	18.9
	INJECTION CAPACITY (THEORETICAL)	cm3	1855	2110	2382	2670
	INJECTION WEIGHT(PS)	g	1688	1920	2168	2430
	INJECTION PRESSURE	MPa	191	168	148	133
	INJECTION RATE	g/s	409	465	525	589
	PLASTICIZING CAPACITY	g/s	52	62	71	82
	SCREW SPEED	rpm	130
CLAMPING UNIT	CLAMP FORCE	KN	5260
	OPEN STROKE	mm	830
	MAX. MOULD	mm	830
	MIN. MOULD	mm	330
	SPACE BWTWEEN TIE-BARS (W×H)	mm	810×810
	EJECTOR FORCE	KN	181
	EJECTOR STROKE	KN	230
	EJECTOR NUMBER	n	17
OTHERS	PUMP PRESSURE	MPa	16
	MOTOR POWER	KW	45
	HEATING POWER	KW	24.8
	MACHINE DIMENSION (L×W×H)	m	8.61×2.14×2.61
	MACHINE WEIGHT	t	21
	OIL TANK CAPACITY	L	1156

Mold Plate Dimension:
