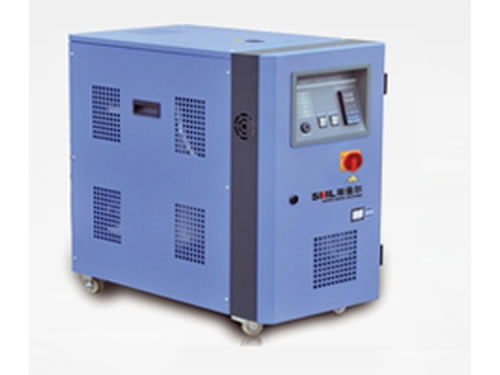

Mold Temperature Controller

Mold Temperature Controller
English English Russian Russian Spanish Spanish French French

Advantages

1. The mold temperature controller is accurately controlled by PID micro computer.
2. Protection against pump overload is provided, contributing a lot to prolonging the machine’s service life.
3. This auxiliary machine for plastic injection molding adopts alarm device in case that the liquid level is too low, which helps to make system run safely.
4. The heating barrel is made of stainless steel and is easy to clean.
5. This mold temperature controller is equipped with indicator capable of detecting various problems, which enables the customers to timely know the malfunction reason and accordingly solve the problem.
6. The switch of main power source is in conformity with CE safety standard.
7. Air blower is installed to make the cleaning convenient and to prolong the life span.
8. HYSION temperature controller improves molding efficiency and reduces defective products. Moreover, it is beneficial to speed up manufacturing efficiency, reducing energy consumption and saving energy.

Parameters of Mold Temperature Controller


Model Max Temp℃ Heat
(kw) 		Pump (kw) Flux L/min Heating
Medium 		Cooling
Mode 		Mold Tie
(Inch) 		External Dimensions
(L×W×H) 		Weight(kg)
STC-6W 95 6 0.37 45 3/8×2×2 780×260×650 65
STC-9W 95 9 0.75 56 3/8×4×2 780×260×650 68
STC-12W 95 12 1.5 80 Direct 3/8×6×2 780×260×650 70
STC-18W 95 9×2 1.5 200 Water Cooling 3/8×6×2 900×400×810 100
STC-24W 95 12×2 2.2 315 3/8×6×2 900×400×810 100
STC-6 160 6 0.37 45 3/8×2×2 780×260×650 70
STC-9 160 9 0.75 56 3/8×4×2 780×260×650 73
STC-12 160 12 1.5 80 Indirect 3/8×6×2 780×260×650 75
STC-18 160 9×2 1.5 200 Oil Cooling 3/8×6×2 900×400×810 110
STC-24 160 12×2 2.2 315 3/8×6×2 900×400×810 110
STCH-9W 160 9 0.75 165 3/8×4×2 900×400×810 90
STCH-12W 160 12 1.5 235 Indirect 3/8×4×2 900×400×810 115
STCH-24W 160 24 2.2 315 Water Cooling 3/8×4×2 900×400×810 130
STCH-9 300 9 0.55 45 3/8×4×2 900×400×810 120
STCH-12 300 12 0.75 60 Indirect 3/8×4×2 900×400×810 140
STCH-24 300 24 1.5 165 Oil Cooling 3/8×4×2 900×400×810 210
STC-6W-2D 95 6×2 0.37×2 45×2 水
Direct 		3/8×2×4 900×400×810 110
STC-9W-2D 95 9×2 0.75×2 56×2 Water Cooling 3/8×4×4 900×400×810 115
STC-6-2D 160 6×2 0.37×2 45×2
Indirect 		3/8×2×4 900×400×810 120
STC-9-2D 160 9×2 0.75×2 56×2 Oil Cooling 3/8×4×4 900×400×810 125

Diagram of installation:
