Description

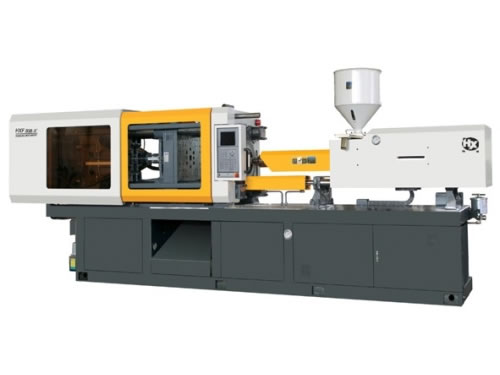

HX 308 hybrid injection molding machine is a fully updated product based on the previous types. With previous features such as high precision and good performance maintained, this new hydraulic injection moulding equipment turns out to be low-noise and energy-saving. Besides, its molding cycle is short, and mold closing/opening is fast.
Features
HX 308 hybrid injection molding machine is featured low noise, easy operation, high efficiency and energy conservation.
1. New hydraulic circuit is specially designed by integrating advanced electrical control technology. It successfully guarantees a high response, low noise, precise speed and pressure control without weakening the performance of holding injection. Meanwhile, it can avoid the unnecessary waste of lubricants.
2. HX 308 hybrid injection molding machine has overcome shortcomings widely existed in many other electric injection machines. Firstly, it adopts imported control technologies to decrease energy consumption and maintain the oil temperature within a certain scale. Secondly, the quality actuator not only improves efficiency but also enhances working life of dynamic oil. Thirdly, maintenance for the cooling system is easy and economical.
3. Single-pump closed loop is employed to control the multi-cylinder actuator, such as to save energy and keep the investment cost low as possible.
4. Supplies and maintenance needs are kept at a low level to make this hybrid injection molding machine energy saving and environment-friendly.
3. Supplies and maintenance needs are kept under a low level, greatly saving the energy and enhancing environmental protection, etc. Moreover, the operation costs for the initial investment can be recovered in the short term.
Quality
Product quality should be put into the prior places, because a badly-formed plastic piece is neither attractive in appearance, nor unstable in structure. Poor-quality products molded by hybrid injection molding machines, like automotive parts, furniture and chemical containers, will lead to increased risk of injury and liability. Generally speaking, a plastic product should be free from air bubbles and foreign materials. Hereby, a friendly tip is offered to you: Before choosing or re-purchasing the right machine, you should provide desirable/previous plastic product sample to us for reference; besides, you’d better take quotation into consideration, for machines at different prices or offered by varied manufacturers are to produce plastic items with distinct qualities.
Why Do People Choose Our Injection Molding Machine?
Parameters of HX 308 Hybrid Injection Molding Machine :
|
MODEL:HX(*)308/1400
|
|
TECHNICAL PARAMETER TABLE
|
A
|
B
|
C
|
|
INJECTION UNIT
|
SCREW DIAMETER
|
mm
|
60
|
65
|
70
|
|
SCREW L/D RATIO
|
L/D
|
22.7
|
21
|
19.5
|
|
INJECTION CAPACITY (THEORETICAL)
|
cm3
|
735
|
862
|
1000
|
|
INJECTION WEIGHT(PS)
|
g
|
683
|
802
|
930
|
|
INJECTION PRESSURE
|
MPa
|
190
|
162
|
140
|
|
INJECTION RATE
|
g/s
|
258
|
300
|
348
|
|
PLASTICIZING CAPACITY
|
g/s
|
40
|
48
|
57
|
|
SCREW SPEED
|
rpm
|
160
|
|
CLAMPING UNIT
|
CLAMP FORCE
|
KN
|
3080
|
|
OPEN STROKE
|
mm
|
600
|
|
MAX. MOULD
|
mm
|
690
|
|
MIN. MOULD
|
mm
|
230
|
|
SPACE BWTWEEN TIE-BARS (W×H)
|
mm
|
605×590
|
|
EJECTOR FORCE
|
KN
|
70
|
|
EJECTOR STROKE
|
KN
|
150
|
|
EJECTOR NUMBER
|
n
|
13
|
|
OTHERS
|
PUMP PRESSURE
|
MPa
|
16
|
|
MOTOR POWER
|
KW
|
30
|
|
HEATING POWER
|
KW
|
18.73
|
|
MACHINE DIMENSION (L×W×H)
|
m
|
6.58×1.75×2.15
|
|
MACHINE WEIGHT
|
t
|
9.3
|
|
OIL TANK CAPACITY
|
L
|
415
|
Mold Plate Dimension:
