One Piece Complete Auto Loader

Description

1. This one piece complete auto loader is equipped with commutator motor of high speed, small cubage and strong suction.
2. Its smart connection between operation controller and electric control box makes the operation convenient.
3. Whole process is controlled by the micro computer, making the operation accurate.
4. The one piece complete auto loader is armed with electronic detector, keeping the fault rate relatively low.
5. Air storage device hanged outside can make a thorough clean of the dust on the strainer.
6. Indicator lamp for detecting malfunctions can show malfunction reasons so that operators can solve problems timely.

Parameters of One Piece Complete Auto Loader :

Model	Motor (kw)	Conveying Capacity (kg/hr)	Conveying (m)	Material Hopper Volume (L)	Conveying Tube Calibre (mm)	External Dimensions (cm)	Weight (kg)
SAL-300C	1	250	4.5	6	Φ38	360 × 260 × 500	10
SAL-300CE	1	250	4.5	6	Φ38	360 × 260 × 600	10

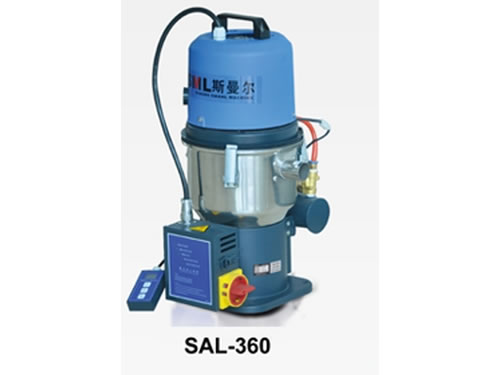

SAL-360	1.1	300	4.5	6	Φ38	360 × 260 × 570	12
SAL-360E	1.1	300	4.5	6	Φ38	360 × 260 × 600	13
SAL-390	1.2	350	4.5	12	Φ38	400 × 300 × 500	19
SAL-390E	1.2	350	4.5	12	Φ38	400 × 300 × 500	19
SAL-400	0.75	350	4.5	12	Φ38	400 × 300 × 500	25

Diagram of installation
