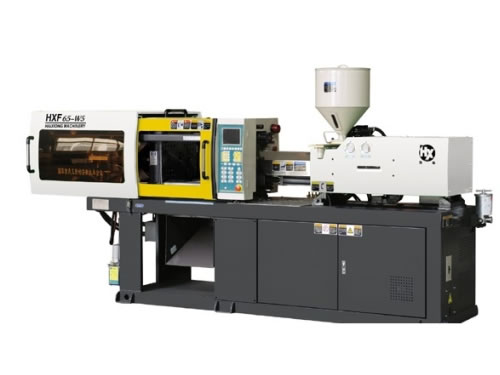

HX(*) 65 Injection Molding Machines

Description

Injection molding machine, also known as injection press, is the main device for manufacturing a wide range of plastic products by injecting thermoplastic plastics or thermosetting plastics to the forming mold. The operating principle is summarized as follow: firstly, the molding machine heats the plastic materials; then, exert high pressure upon the melted plastic, and inject it into the mold so that the plastic can fill the mold cavity. Hydraulic Injection moulding machines can be classified into three types: vertical type, horizontal type and full-electrical type. Our products belong to vertical type and are driven by oil and electric power.
Why Do People Choose Our Injection Molding Machine?

Features of HX 65Injection Molding Machine


Plastic Injection Molding Machine Plastic Injection Molding Machine

Hydraulic System

1. Famous hydraulic components are adopted to guarantee high reliability and long service life.
2. Hydraulic valve block is reasonably design and of good sealing performance.
3. Low oil temperature system is adopted to can prolong the service life of the seals.
4. Low noise arises during running, which makes this injection molding machine environment-friendly.

Clamping Unit

1. With intact structure, mold clamps are featured by great platen rigidity.
2. It is designed in optimized toggle structure, which ensures stability of mold opening/closing.
3. Based on finite element analysis, clamping units realize rational stress distribution and high clamping precision.
4. For HX 65 injection molding machine, the maintenance is convenient due to central lubrication mechanism (to adjust the mold height).

Injection Unit

1. Screw design is updated to fulfill better plasticizing and mixing effect.
2. Modular structure is well-designed for convenient components replacement.
3. Central lubrication device is installed to guarantee convenient maintenance for HX 65 injection molding machine.
4. Slider is technically installed under movable hopper for easier materials feeding.
5. A variety of optional special screws are manufactured for specific materials.

Controlling System

1. It is characteristic of flexible molding data setting and adjusting.
2. It is equipped with 120 sets of mold data saving.
4. It also has the advantages of the SPC production quality control.

Parameter :


MODEL:HX(*)65/160
TECHNICAL PARAMETER TABLE A B C D
INJECTION UNIT SCREW DIAMETER mm 28 32 35 38
SCREW L/D RATIO L/D 24.3 21.3 19.5 18
INJECTION CAPACITY (THEORETICAL) cm3 73 96 115 136
INJECTION WEIGHT(PS) g 67 87 105 123
INJECTION PRESSURE MPa 229 175 146 123
INJECTION RATE g/s 40 55 66 74
PLASTICIZING CAPACITY g/s 6 8 10 12
SCREW SPEED rpm 190
CLAMPING UNIT CLAMP FORCE KN 650
OPEN STROKE mm 270
MAX. MOULD mm 300
MIN. MOULD mm 100
SPACE BWTWEEN TIE-BARS (W×H) mm 310×290
EJECTOR FORCE KN 27.5
EJECTOR STROKE KN 65
EJECTOR NUMBER n 1
OTHERS PUMP PRESSURE MPa 16
MOTOR POWER KW 7.5
HEATING POWER KW 6.88
MACHINE DIMENSION (L×W×H) m 3.53×1.1×1.7
MACHINE WEIGHT t 1.9
OIL TANK CAPACITY L 117

Mold Plate Dimension:

Plastic Injection Molding Machine
