Description

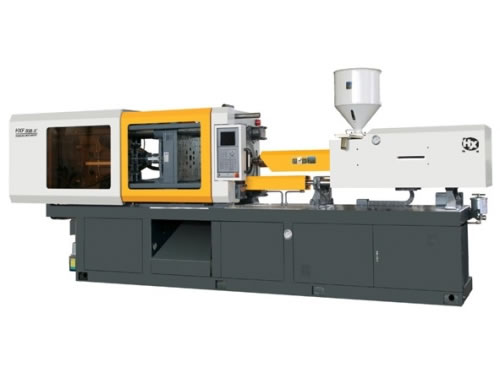

Like other HYSION precision injection molding machines, ranging from HX65 to HX2000, the HX 288 machine is characterized by various outstanding performances, such as stable running, and precise & fast controlling system. Besides, each high-speed plastic injection forming machinery adopts internationally famous brand materials for its production, which endows it with good stability, long working life, high performance and capability of producing various plastic products.
Components of HX 288 Precision Injection Molding Machine
Clamping Unit
1. Clamping platens are processed by FEA (Finite Element Analysis), ensuring that the clamping system is rigid in structure and runs stably.
2. Highly sensitive mold protection is applied.
3. Mold clamping is rapid and stable.
Hydraulic Unit
1. In HX 288 precision injection molding machine, the hydraulic system is distinctive due to combination of high-quality pump and control valve technology. Besides, the adoption of world famous brands endows this machine with high precision, reliability and repeatability.
2. It is a hydraulic proportional pressure and flow control system.
3. Oil flow supplement contributes to high speed mold clamping and quick-reaction liable performance.
Control System
1. Imported advanced computer controlling system guarantees working flexibility of HX 288 precision injection molding machine.
2. A large color LCD screen is utilized. Besides, it supports multi-language compatibility.
3. Accurate and consistent heat control on barrel temperature is realized due to closed loop PID controller (proportional integral derivative controller).
4. Dustproof and waterproof control cabinets provide a neat and tidy enclosure for electrical control components.
5. Abnormal alarm function is configured to warn operators of machine malfunction.
Injection Unit
1. Dual-cylinder injection unit and high-torque motor are adopted in this precision injection molding machine, such as to guarantee the smooth screw plasticization.
2. Injection pressure, speed and hold pressure are accurately controlled at multi stages.
3. It is set with plasticizing cold start prevention function and suck back function.
Why Do People Choose Our Injection Molding Machine?
Parameters of HX 288 Precision Injection Molding Machine :
|
MODEL:HX(*)288/1200
|
|
TECHNICAL PARAMETER TABLE
|
A
|
B
|
C
|
|
INJECTION UNIT
|
SCREW DIAMETER
|
mm
|
55
|
60
|
65
|
|
SCREW L/D RATIO
|
L/D
|
22.5
|
20.6
|
19
|
|
INJECTION CAPACITY (THEORETICAL)
|
cm3
|
594
|
707
|
830
|
|
INJECTION WEIGHT(PS)
|
g
|
552
|
655
|
770
|
|
INJECTION PRESSURE
|
MPa
|
200
|
168
|
143
|
|
INJECTION RATE
|
g/s
|
227
|
270
|
316
|
|
PLASTICIZING CAPACITY
|
g/s
|
35
|
43
|
51
|
|
SCREW SPEED
|
rpm
|
180
|
|
CLAMPING UNIT
|
CLAMP FORCE
|
KN
|
2880
|
|
OPEN STROKE
|
mm
|
550
|
|
MAX. MOULD
|
mm
|
600
|
|
MIN. MOULD
|
mm
|
230
|
|
SPACE BWTWEEN TIE-BARS (W×H)
|
mm
|
570×570
|
|
EJECTOR FORCE
|
KN
|
65
|
|
EJECTOR STROKE
|
KN
|
150
|
|
EJECTOR NUMBER
|
n
|
13
|
|
OTHERS
|
PUMP PRESSURE
|
MPa
|
16
|
|
MOTOR POWER
|
KW
|
30
|
|
HEATING POWER
|
KW
|
16.73
|
|
MACHINE DIMENSION (L×W×H)
|
m
|
6.10×1.70×2.08
|
|
MACHINE WEIGHT
|
t
|
9
|
|
OIL TANK CAPACITY
|
L
|
346
|
Mold Plate Dimension:
